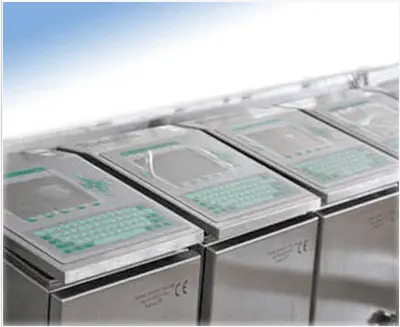

Rottweil I-Jet 455HB continuous inkjet printer (CIJ) is engineered for industrial non-contact coding and marking application, capable of printing from 1~4 lines of text, nozzle 55um. Utilize the latest Germany technology, LINUX operating system, stable and reliable ink system, 7” TFT color screen, simple operation, easy maintenance and economy. Specifically designed to meet basic coding across a wide range of substrates, it is ideal for printing date, time, batch number, graphics, trademarks, etc. Logo can be created by individual user on printer or PC, enabling any logo to be easily printed.

Utilize fast dry ink, to those that offer outstanding adhesion to film, glass, metal, plastic, PE, PVC, paper, wood and rubber. In addition, different inks will be supplied according to your particular application, such as standard ink, pigment ink, food grade ink, ethanol resistant ink, UV ink, etc.



Main Feature:

32 digits embedded LINUX operating system, five CPU chips

Advance diaphragm pump, overload protection

USB flash disk, save/restore print message & coding easily

Solvent bottle detector, ensures smooth running

Pop-op window for regular maintenance (2,000 hours)

TFT color screen, QWERTY int’l standard keypad

CE / ISO9001 certified



Interface & Communication

TFT color screen, QWERTY int’l standard keypad

USB port-easy upgrading, easy save/restore of print text & config

Ethernet port (10/100MB)

RS232/485 port



Electronic & Software Features:

32 digits embedded LINUX operating system

5 CPU chips adopted, multi-tasks operation is available

User friendly interface, WYSIWYG message/graphic/logo editing

Storage memory 40MB

“Run / Stop”hot key to start and shut down
“INFO”hot key to display fault log
USB/Ethernet software automatic upgrading

Pop-op window for regular maintenance (2,000 hours)

Real time and date calendar

Three print mode: High Speed, Standard, and Graphic to meet different applications

Message format: Horizontal-reverse, Vertical-reverse, Negative, Bold, Character width

Defined grid value to move the editing cursors at certain dot

3 counters & 4 shifts, automatically

Graphic/Logo editing software

OPS (Encoder direction recognition and print compensation function)

DMS (Distance Measuring System) using encoder signals

Password access to different level of users

Multi operation languages available

Movie player, to put training clips in USB disk, for operators (Optional)



Hydraulic System:

Compact design

Full automatic pressure control

Full automatic viscosity control

Temperature sensor to assist accurate viscosity control under harsh environment

Diaphragm pumps with reliability, longer life, low maintenance cost, high contrast printing

No need compressed air to power

Pressure pump overload protection, ensure more endurable & long life

Electrical control system completely separated design from hydraulic system

600ml ink/solvent bottle, easy to refill with no stop running

Solvent bottle detector, insufficient alarm

1、Photo sensor

2、Shaft encoder

3、Print head stand/Bracket

4、Alarm system, 3 color (green/yellow/red)

5、Conveyor, speed adjustable

6、Condenser, solvent recycling system

7、Sliding table, for demonstration and exhibition，with photo sensor & encoder.

8、Graphic/logo editing software, for PC

9、Database printing software

10、Pop-op window for regular maintenance

11、Other
